PROPRIETARY TECHNOLOGY

PrismCore^™ Multi-Wavelength Technology

The only retinal laser integrating four wavelengths into a single console. Complete versatility. Streamlined workflow. One powerful platform.

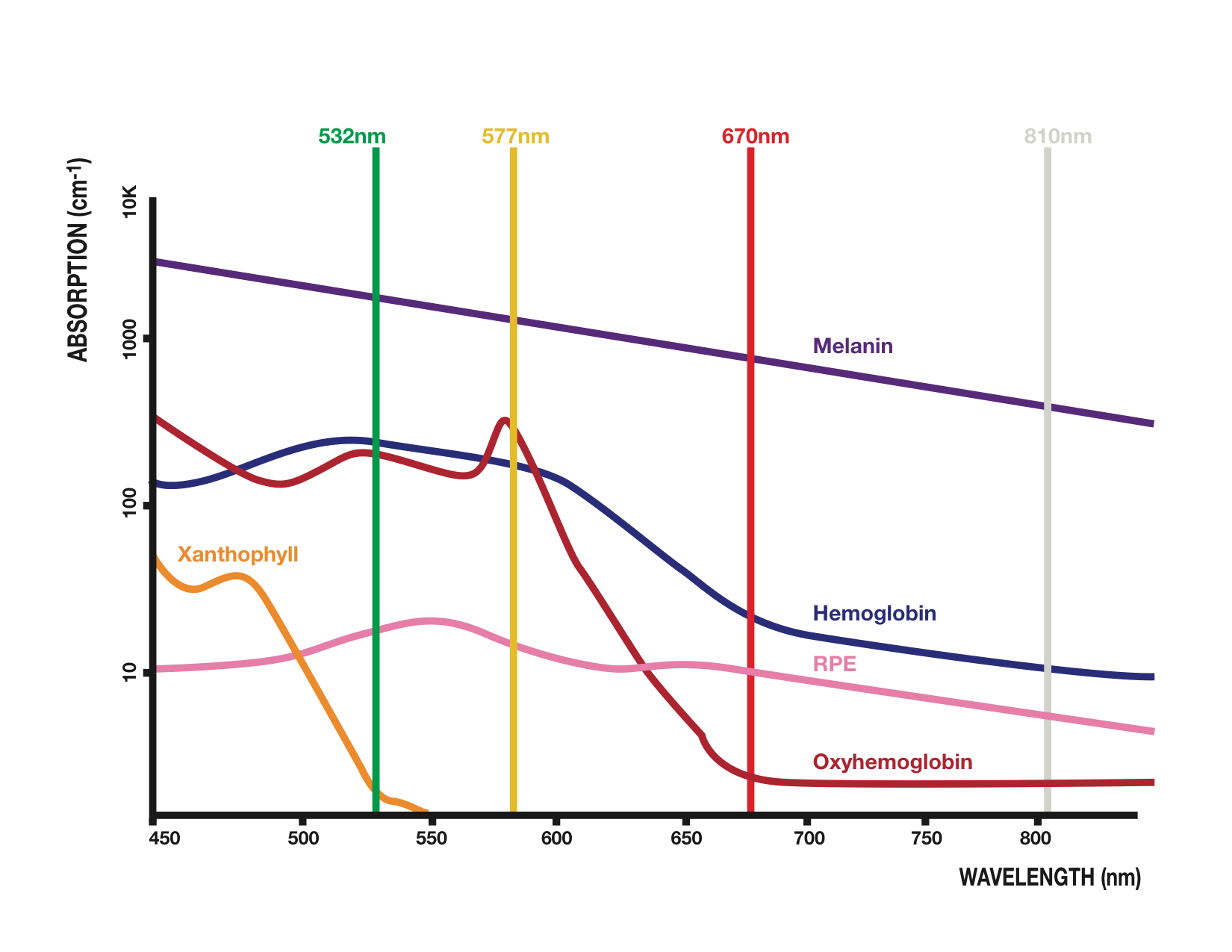

PrismCore™ wavelength absorption chart showing 532nm, 577nm, 670nm, and 810nm

The PrismCore^™ Advantage

Four clinically proven wavelengths in one integrated system.

The most effective wavelengths for laser treatment are those with optimal tissue absorption properties for the target condition. PrismCore^™ combines 532nm, 577nm, 670nm, and 810nm wavelengths into a single console, allowing physicians to select the ideal wavelength for each clinical indication.

Traditional retinal laser systems limit physicians to a single wavelength, forcing clinics to purchase multiple devices. PrismCore^™ eliminates this limitation, delivering comprehensive wavelength coverage from one platform with no compromise in performance. Every wavelength is paired with SP-Mode^® Microsecond Laser Technology for sub-threshold treatment options across all clinical indications.

Clinical Flexibility with Every Wavelength

Each wavelength is optimized for specific tissue absorption properties, giving physicians the ability to tailor treatments with precision.

532nm Green

The Gold Standard

Highly absorbed by melanin and hemoglobin.

Panretinal photocoagulation
Diabetic retinopathy
Central/branch retinal vein occlusion
Retinal tears, holes & detachments
Endophotocoagulation
Laser trabeculoplasty
SP-Mode® laser trabeculoplasty

577nm Yellow

Macular Precision

Highly absorbed by melanin with peak absorption in oxyhemoglobin, negligible xanthophyll absorption, and low light scattering.

Diabetic macular edema (focal photocoagulation)
Macular treatments
Abnormal vasculature
Panretinal photocoagulation
Diabetic retinopathy
Central/branch retinal vein occlusion
Retinal tears, holes & detachments
Endophotocoagulation
SP-Mode® macular laser (DME, CSCR)
Laser trabeculoplasty
SP-Mode® laser trabeculoplasty

670nm Red

The Ideal Choice When Opacities Are Present

Well absorbed by melanin, minimally absorbed by hemoglobin, negligible xanthophyll absorption. Good penetration through media hemorrhage, opacity, and sclera.

Panretinal photocoagulation
Diabetic retinopathy
Central/branch retinal vein occlusion
Retinal tears, holes & detachments
Endophotocoagulation
SP-Mode® macular laser (DME, CSCR)

810nm Infrared

The Versatile Alternative for Deep Penetration

Well absorbed by melanin, deep choroidal reach, minimal lens absorption, no flash light. Good penetration through media hemorrhage and sclera.

Panretinal photocoagulation
Diabetic retinopathy
Central/branch retinal vein occlusion
Retinal tears, holes & detachments
Endophotocoagulation
Retinopathy of prematurity
SP-Mode® macular laser (DME, CSCR)
Transscleral cyclophotocoagulation (TSCPC)
SP-Mode® TSCPC
SP-Mode® laser trabeculoplasty
Transpupillary thermotherapy (choroidal tumor)

Key Advantages

One platform replaces multiple standalone lasers, expanding capability while simplifying your practice.

Streamlined Workflow

Switch wavelengths without changing systems. Faster treatment delivery, reduced physician fatigue, and greater patient comfort.

Scalable Configuration

Start with one or two wavelengths and add more as your practice needs evolve. The modular design lets you expand capability without replacing your system.

Smaller Footprint

Consolidate four laser technologies into one console, freeing up valuable clinic space and simplifying equipment management.

Ultra-Fast Pattern Scanning

Galvanometer-based pattern scanning with parfocal continuously variable zoom from 50 to 500 micrometers for shorter treatment sessions and higher throughput.
