FLAGSHIP PRODUCT
TruScan Pro
Multi-Wavelength Pattern Scanning Photocoagulator with SP-Mode® Microsecond Laser Technology
TruScan Pro
Multi-Wavelength Pattern Scanning Photocoagulator
TruScan Pro was built on PrismCore™ Multi-Wavelength Technology to consolidate up to four wavelengths with SP-Mode® Microsecond Laser Technology in one compact and versatile platform.
- Better treatment for patients: SP-Mode® delivers a therapeutic effect that is safe and repeatable for glaucoma and retina procedures.
- Up to four wavelengths in one console: 532nm, 577nm, 670nm, and 810nm, consolidate multiple devices into a single, versatile platform.
- Integrated Delivery System (IDS): engineered with the world’s fastest pattern scanning technology to increase patient comfort and enhance a seamless workflow.
- Dual-Port Console: designed for seamless compatibility with indirect ophthalmoscopes, glaucoma probes, and multiple endoprobes to maximize clinical performance.
- Heads-Up Display (HUD): View live treatment images and real-time parameters directly through the binoculars, allowing you to maintain focus on the patient.
- 15-inch Touchscreen LCD: intuitive control, customizable settings, integrated patient reporting, and expanded pattern selection to support precise, efficient treatment delivery.
SP-Mode® Microsecond Laser Technology
SP-Mode® delivers microsecond pulses that stimulate retinal pigment epithelium without visible burns, a gentler approach that preserves healthy tissue and reduces patient discomfort. Backed by peer-reviewed studies demonstrating efficacy across diabetic macular edema, central serous chorioretinopathy, and more.
Multi-Wavelength Platform
Four wavelengths, 532nm (green), 577nm (yellow), 670nm (red), and 810nm (infrared), each with distinct absorption characteristics for different conditions. One console replaces multiple standalone lasers, simplifying your practice while giving patients access to the right treatment for their specific condition.

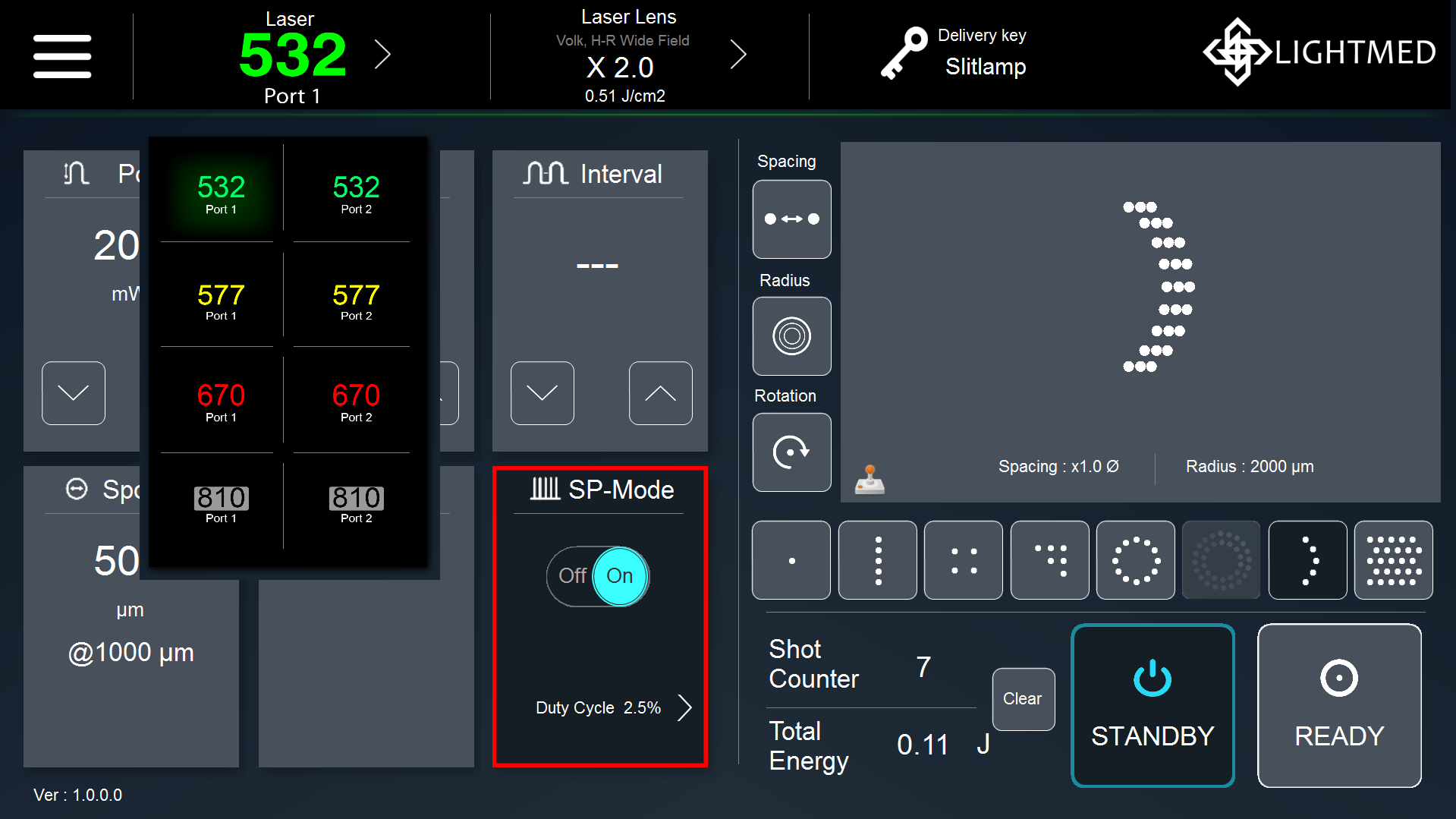

See the touchscreen interface →
Ultra-Fast Galvo Pattern Scanning
Galvanometer-based pattern scanning with parfocal continuously variable zoom spot control from 50 to 500 micrometers. Pre-programmed and customizable patterns mean shorter treatment sessions for patients and higher clinical throughput for your practice.
Integrated Delivery System (IDS)
Built-in optics and integrated laser safety filters provide a wide field of view and a five-step magnification changer for exceptional visualization. Designed within an ergonomic slit lamp, IDS offers clear, precise viewing of pathologies with fingertip illumination control, supporting confident, accurate treatment.

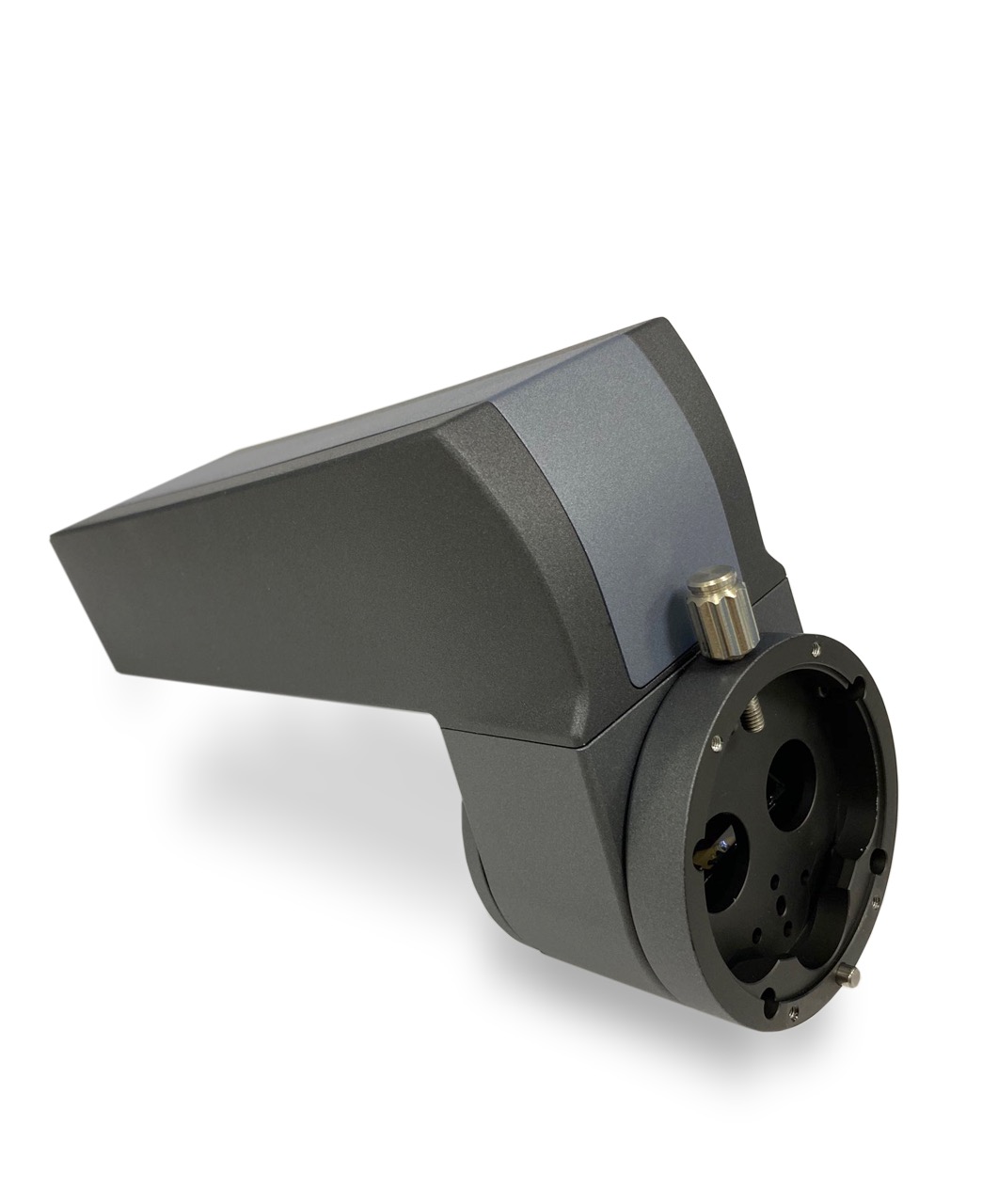

Heads-Up Display (HUD)
Optional accessory that displays treatment parameters directly through the slit lamp oculars. Physicians never need to look away from the patient during treatment, enhancing precision and contributing to safer, more comfortable procedures.
See the HUD →
Dual Port System
Compatible with two delivery devices that switch instantly at the touch of a button, including slit lamp, laser indirect ophthalmoscope, endophotocoagulation probes, and cyclophotocoagulation probes. One versatile platform designed to support every delivery method with efficiency and precision.

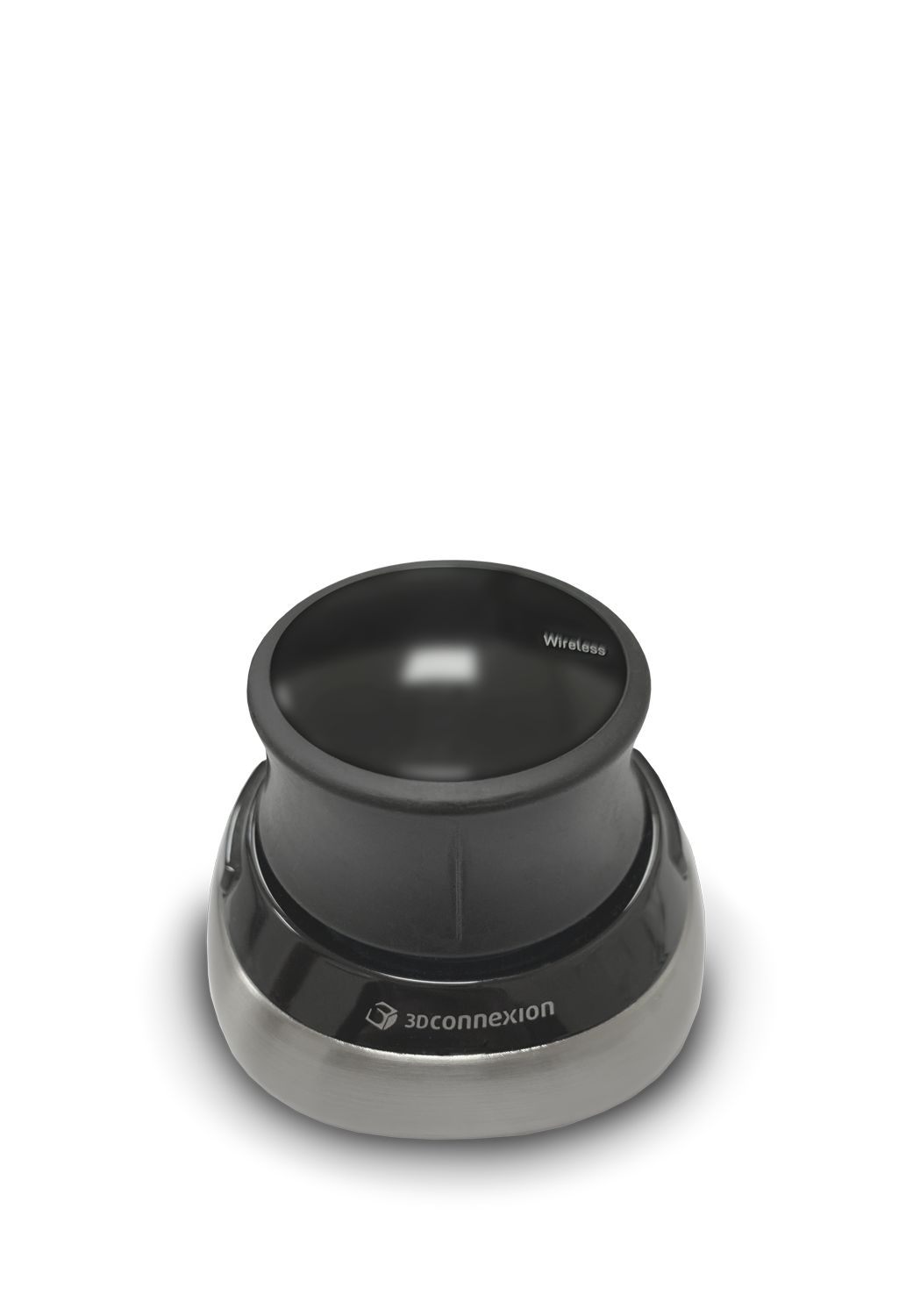

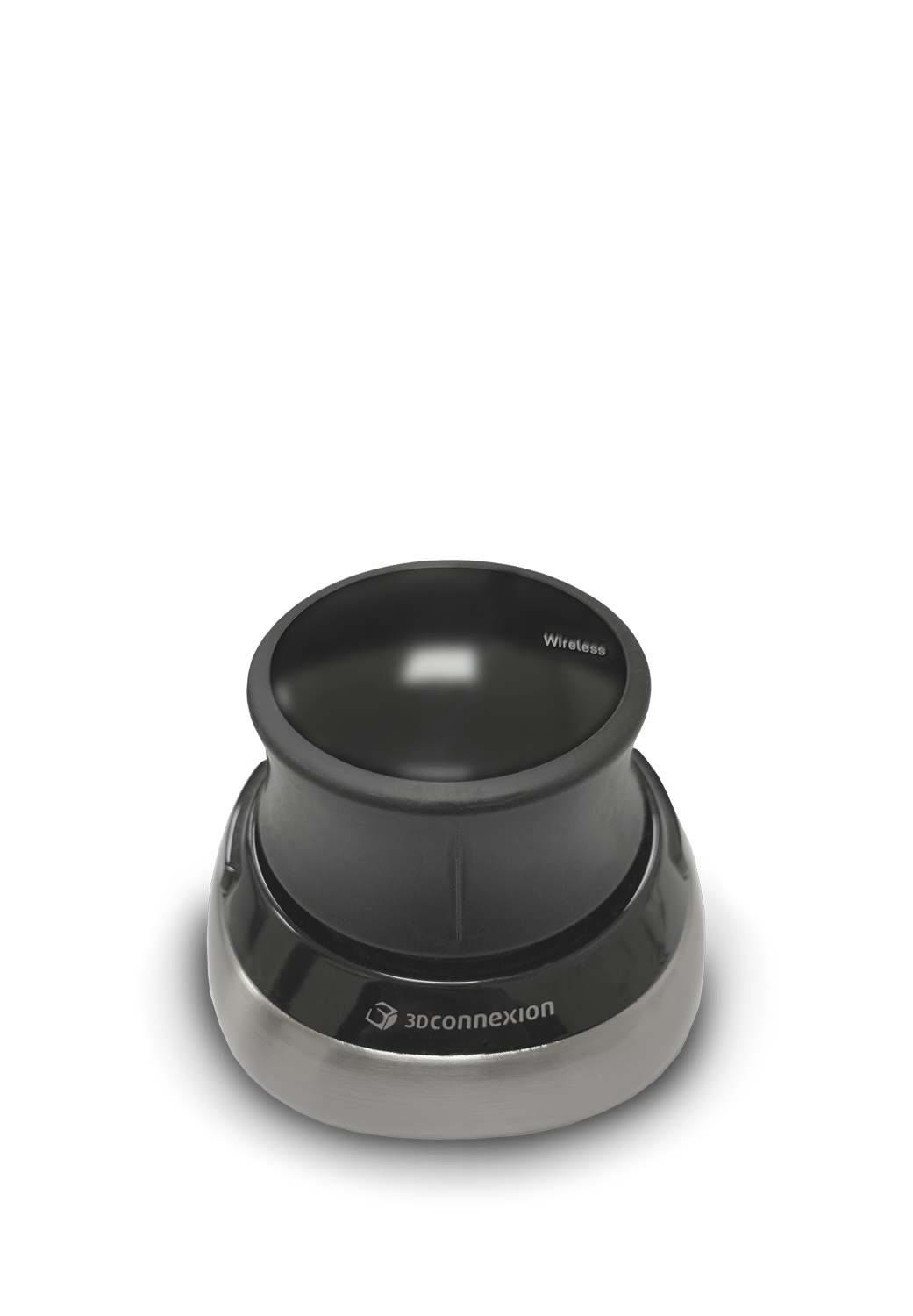

3D Mouse for Comfortable Control
Designed for intuitive, precision-driven workflow, the 3D Mouse allows you to easily select and customize treatment patterns, including rotation, group selection, spacing, and radius adjustments. With simple touch control, you can seamlessly adjust power, duration, and interval settings for efficient, confident treatment delivery.
See the 3D mouse →
Wheelchair-Accessible Smart Table
Single-column design accommodates patients of all mobility levels comfortably. The ergonomic layout reduces setup time between appointments, keeping your schedule moving efficiently.
Technical Specifications
| Max Power Output on Cornea | 532nm: 2W | 577nm: 2W | 670nm: 0.7W | 810nm: 3W |
| Wavelength | 532nm (Green), 577nm (Yellow), 670nm (Red), 810nm (Infrared) |
| Mode of Operation | Continuous Wave |
| Laser Type | Solid-State Laser (532nm, 577nm, 670nm) | Diode Laser (810nm) |
| Pulse Duration | 0.01 – 3.0s |
| Pulse Interval | 0.01 – 3.0s & OFF (Single) |
| SP-Mode® Settings |
Port 1: Pulse Duration: 0.01 – 3.0s | Duty Cycle: 5%, 10%, 15%, 20%, 30%, 40% | Period: 0.01 – 3.0s & OFF Port 2 (810nm only): Pulse Duration: 0.01 – 3.0, 3.5, 4.0, 4.5, 5.0, 10.0 – 90.0s | Duty Cycle: 5%, 10%, 15%, 20%, 25%, 30%, 31.3%, 40% | Period: 0.01 – 3.0, 3.5, 4.0, 4.5, 5.0, 10.0s & OFF |
| Pattern Scanning | Single, Straight, Square, Triangle, Circle, Arc, Curve and Equal Square Spacing |
| Spot Size |
Single Spot: 50 – 500 µm Limited Scanning Patterns: 100 µm (only Straight, Square, Triangle, Equal Square Spacing) Scanning Patterns: 100, 200, 300, 400, 500 µm |
| Laser Safety Class | Class 4 |
| Aiming Laser | Red laser diode (635nm), under 1.0mW continuously variable |
| Slit Lamp Illumination | LED XLamp® XM-L2 2.85V 10W |
| Cooling System | Fan cooled and TEC’s for Laser Diode and Crystal |
| Dimensions |
TruScan Pro Laser Console: 13 cm (H) × 40.5 cm (W) × 40 cm (D) Complete System on Table: 140 cm (H) × 92 cm (W) × 63 cm (D) |
| Weight |
TruScan Pro Laser Console: 88 kg Complete System on Table: 130 kg |
Specifications subject to change. Refer to the operator manual for complete technical details.
Supporting Research for TruScan Pro
SP-Mode® Microsecond Laser Technology has been evaluated in peer-reviewed publications spanning diabetic macular edema, central serous chorioretinopathy, and other retinal conditions. Below are published studies relevant to the TruScan Pro platform.
Subthreshold Laser Therapy for CSCR
Clinical review evaluating subthreshold microsecond pulsing for chronic central serous chorioretinopathy, demonstrating subretinal fluid resolution while preserving retinal structure without visible laser burns.
Madani R, Ayoub A, Alasil T, Retina Today, 2024
Read Paper →Retrospective study of 42 eyes comparing red (670nm) subthreshold micropulse laser to intravitreal aflibercept for treatment-naïve DME. Red SMPL maintained visual acuity and significantly reduced retinal thickness at 12 months, with outcomes equivalent to aflibercept injection.
Kikushima W, Furuhata Y, Shijo T, et al., Photodiagnosis and Photodynamic Therapy, 2025
Read Paper →Choosing the Right Wavelength: Effectiveness of Yellow
Comprehensive review of yellow 577nm SP-Mode® subthreshold micropulse laser therapy, examining wavelength-specific advantages for retinal photocoagulation including selective absorption by melanin and oxyhemoglobin with reduced xanthophyll uptake.
Alasil T, Retina Today, 2020
Read Paper →Retrospective chart review of 43 eyes comparing red (670nm) and yellow (577nm) subthreshold micropulse laser for DME. Both wavelengths maintained visual acuity and significantly reduced central retinal thickness at 12 months, suggesting comparable long-term efficacy.
Kikushima W, Shijo T, Furuhata Y, et al., Pharmaceuticals, 2021
Read Paper →Retrospective study of 12 eyes treated with hybrid threshold laser (532nm at 5% duty cycle) for DME. Retinal thickness reduced by approximately 20% at 24 weeks with minimal scar formation and stabilized macular edema.
Marashi A, Zazo A, Annals of Medicine and Surgery, 2022
Read Paper →Short-Term Outcome (1 Year) of Yellow Subthreshold Pulsed Laser Treatment on Diabetic Macular Edema
One-year outcomes of yellow 577nm subthreshold pulsed laser treatment for diabetic macular edema using the TruScan 577 with SP-Mode® Microsecond Laser Technology.
Kikushima W, Tateno Y, Furuhata Y, Shijo T, 36th Annual Meeting, Japanese Society for Ocular Circulation, 2019
Read Paper →Comparative study evaluating intravitreal bevacizumab alone versus combined bevacizumab and macular photocoagulation with TruScan for treating diabetic macular edema.
Akpolat C, Evliyaoglu F, Kurt MM, et al., Clinical J Ophthalmol, 2018
